300kg/h Waste Plastic Pelletizing Recycling Machine BOPP PE PP Film

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  300kg/h Waste Plastic Pelletizing Recycling Machine BOPP PE PP Film

Product Details:
Place of Origin: China
Brand Name: PLASTAR
Certification: CE, ISO9001
Model Number: PL500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Dollar 25000-85000$
Packaging Details: wood box+wood pallet+stretch film package
Delivery Time: 30-50 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets/year
Contact Now
Detailed Product Description
Raw Material: PP PE ABS PET HDPE, LDPE Etc Screw Design: Single Screw Extruder
Screw Material: 38CrMoAL Screen Changer: No Stop Automatic Hydraulic Screen Changer
Processing Capacity: 100-1500kg/h Machine Type: Single Stage Or Double Stage
Feeding Type: Force Feeding Degassing Device: Vacuum Degassing
Main Motor Brand: Siemens Beide Name: Plastic Recycling Pelletizing Machine
After-sales Service Provided: Engineers Available To Service Machinery Overseas
High Light:

PLASTAR BOPP PE Plastic Pelletizing Recycling Machine

,

PLASTAR BOPP PE twin screw pelletizer

,

300kg h Plastic Pelletizing Recycling Machine

Waste Plastic Recycling BOPP PE PP Film Pelletizing Granulation Machine Line

PE Film/Bags Granule Die Face Cutting Machine♥
PP Film granule die face cutting machine has two kinds of type. The PSD-Series plastic granulator machine is single stage plastic pelletizing machine with die face cutting system used for clean industrial waste PE film, PP shopping bags. What's more, the RSS-Series plastic granulator machine is double stages plastic pelletizing machine with die face cutting system used for washing recycled PE film, PE shopping bags material. With double stage it work more stable, produce more clean and more density granules.
Product Specification
PSD Series Double Stage Compacting Die-Face Cutting Pelletizing Line (For PE Film, PE Bags, PLA Film)
Model
Screw Diameter
Screw L/D
Main Motor Power
Capacity
SJ85
85mm
28-33:1
55KW
150-200kg/hr
SJ100
100mm
28-33:1
75KW
200-300kg/hr
SJ130
130mm
28-33:1
90KW
300-400kg/hr
SJ150
150mm
28-33:1
110KW
400-500kg/hr
SJ160
160mm
28-33:1
132KW
500-600kg/hr
SJ180
180mm
28-33:1
160KW
600-800kg/hr
SJ200
200mm
28-33:1
200KW
800-1000kg/hr
FEATURES AT A GLANCE
300kg/h Waste Plastic Pelletizing Recycling Machine BOPP PE PP Film 0
Compacting Force Feeder
Compacting hopper opening by hydraulic system.
With glass window and light to check inside working.
Barrel base with the water cooling system controlled by magnetic valve by temperature
The barrel touched material all made by stainless steel.

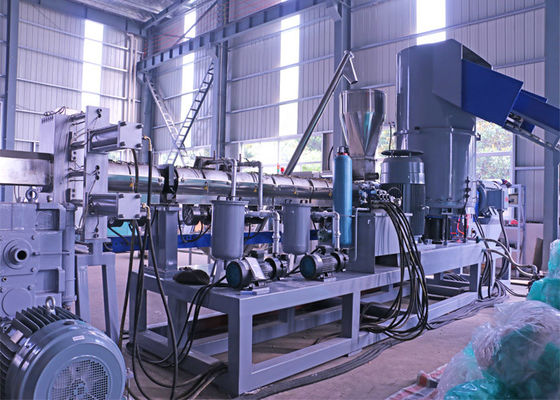

Double Screw Extruder
Double screw Extruder made by sturdy frame, heavy. No vibrating when machine running;
The whole frame where installed the gearbox, motor and screw has done the milling working.
The frame is build up by the square tube and thick steel on top.
300kg/h Waste Plastic Pelletizing Recycling Machine BOPP PE PP Film 1
300kg/h Waste Plastic Pelletizing Recycling Machine BOPP PE PP Film 2
Hydraulic Screen Changer
Double position board model
Board made by 38CrMnAl with forging, heating treatment won’t deform after heating using.
Vertical Die Face Cutting System
Cutting speed adjust by inverter
Inverter brand: DELTA of Taiwan
Blade made by SKD-11 steel
Die mold Made by the 38CrMoALA material with forging treatment, surface been nitriding treatment and buffing.
300kg/h Waste Plastic Pelletizing Recycling Machine BOPP PE PP Film 3

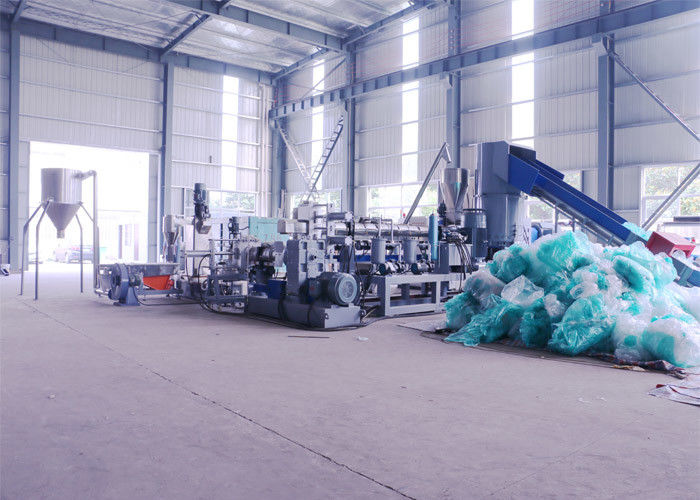

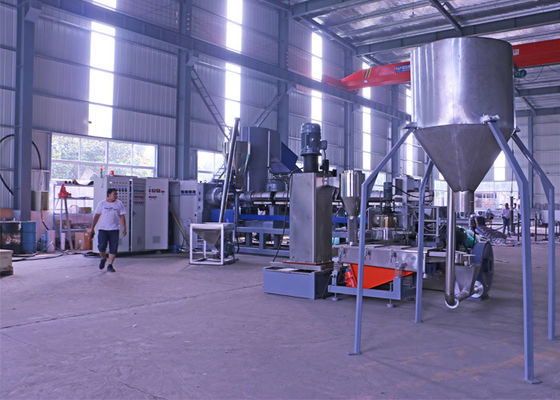

Product Photos
300kg/h Waste Plastic Pelletizing Recycling Machine BOPP PE PP Film 4
300kg/h Waste Plastic Pelletizing Recycling Machine BOPP PE PP Film 5
Optional: Semi-automatic Metal Detector
Customized Degassing Die Head
300kg/h Waste Plastic Pelletizing Recycling Machine BOPP PE PP Film 6
300kg/h Waste Plastic Pelletizing Recycling Machine BOPP PE PP Film 7
Hydraulic Power Station for vacuum degassing unit
Die Head for PE Film
300kg/h Waste Plastic Pelletizing Recycling Machine BOPP PE PP Film 8
300kg/h Waste Plastic Pelletizing Recycling Machine BOPP PE PP Film 9
Optional: Horizontal Die Face Cutting
Vertical dewatering machine
300kg/h Waste Plastic Pelletizing Recycling Machine BOPP PE PP Film 10
300kg/h Waste Plastic Pelletizing Recycling Machine BOPP PE PP Film 11
Raw Material: Clean PE Film Flakes

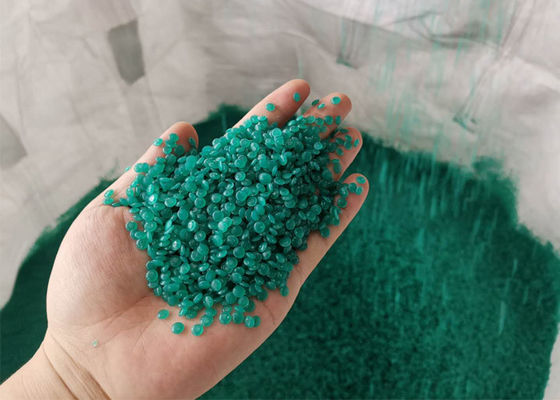

FInal Product: PE Pellets
Our Service

Service Before Sale

1. 24 hours online. Your inquiry will be quick reply by email.
Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction, details pictures and working video to show machine

Service On Sale

1. Test every machine and inspect the machine seriously.
2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3. Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all
original documents to you by Express For Free.
If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you
request. We will tell you the tracking number after delivery.

Service After Sale

1. Free insurance for goods
2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
FAQ
Q: How long is the warranty time of the machine?
A: One year for free
Q: What material is the machine made of?
A: Stainless steel and carbon steel.
Q: Are you manufacturer or trading company?
A: We are a professional plastic machinery manufacturer company located in ZHANGJIAGANG City, Jiangsu Province of China.
In order to have a better understanding of your needs,we need you to provide below information about your product:
1. Which kind of material you are going to process?
2. What is your required production capacity?
3. Do you have any other recycling machines?.
