Product Details:
Payment & Shipping Terms:
|
| Raw Material: | PBAT PLA PVA PCL Resin+Additive | Cutting Type: | Noodle Cutting Type |
|---|---|---|---|
| Processing Capacity: | 100-1500kg/h | Screw Design: | Parallel Twin Screw Extruder |
| Machine Type: | Mother Baby Extruder Or Two Stages Extruder | Feeding Type: | Force Feeding |
| Degassing Device: | Vacuum Degassing | Main Motor Brand: | Siemens Beide |
| High Light: | Co Rotating Plastic Pelletizing Recycling Machine,Recycling twin screw pelletizer,Co Rotating Plastic Pelletizing Recycling Machine |
||
Parallel Co-Rotating Twin Screw Extruder Manufacturer PLA Biodegradable Pelletizing Line
Regarding this machine, we have different models for your choice as per different capacity's requests from customers.
| Model/Parameter | PSD20 | PSD35 | PSD50 | PSD65 | PSD75 | PSD95 |
| Capacity | 10-20 | 30-50 | 100-200 | 200-300 | 300-400 | 400-800 |
| Main motor | 4 | 45-22 | 37-65 | 45-75 | 75-160 | 132-250 |
| Screw diameter | 21 | 35.6 | 50.5 | 62.4 | 71 | 93 |
| L/D | 28-40 | 28-48 | 28-64 | 28-64 | 28-64 | 28-64 |
| Rotate speed(rpm) | 0-600 | 0-600 | 0-600 | 0-600 | 0-600 | 0-600 |
| Screw material | bi-metal | bi-metal | bi-metal | bi-metal | bi-metal | bi-metal |
| Screw hardness | HRC65-70 | HRC65-70 | HRC65-70 | HRC65-70 | HRC65-70 | HRC65-70 |
| Shaft core material | 40CrNiMoA | 40CrNiMoA | 40CrNiMoA | 40CrNiMoA | 40CrNiMoA | 40CrNiMoA |
Product Application
PLA Biodegradable Resin Making/Granulating/Pelletizing Machine is mainly used for granulating biodegradable corn starch with formula material that make biodegradable resin to make biodegradable product,like dishes,chopsticks,food container,shopping bags and so on.
Machine configurations:
1. High speed mixer
2. Spiral screw loader
3. Twin screw extruder
---Main feeder
---Water cooling system
---Vacuum system
4. Fan cooling strand pelletizing system
---Conveying belt
---Pelletizer
| PLA add starch 100% Biodegradable Resin Making/Granulating/Pelletizing Machine | |
| Product name | PLA add starch 100% Biodegradable Resin Making/Granulating/Pelletizing Machine |
| Processing material | PLA/PBAT/PVA+Corn starch/Cassava starch+some small additives |
| Final product | 100% biodegradable granule |
| Application | Films, bags, plates, cups, straws, chopsticks,etc |
| Capacity | 10~1500KG/H (We can provide any capacity model as per cutomers' need) |
| Certification | CE&ISO |

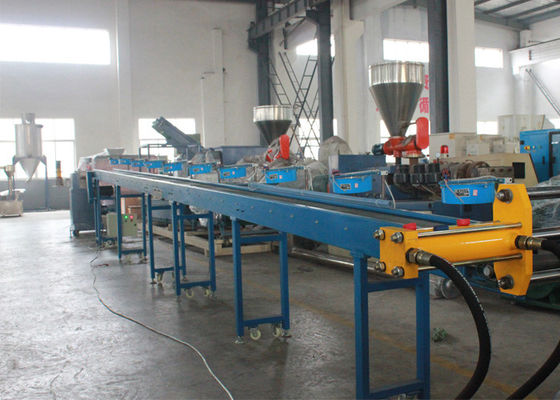

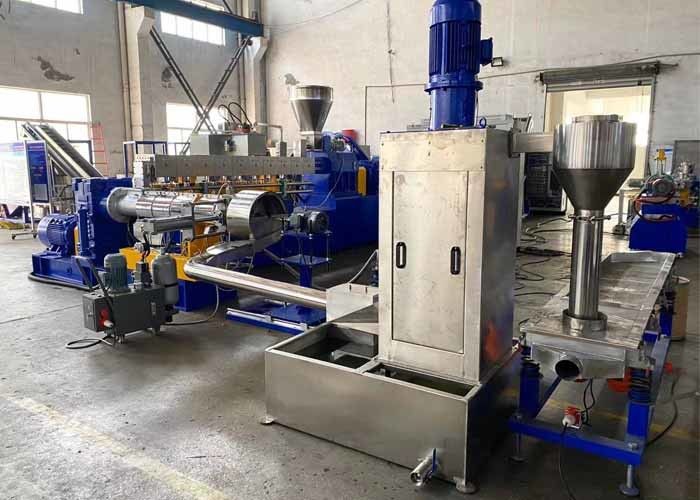

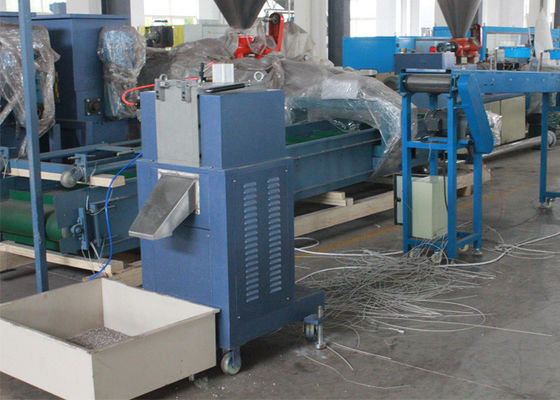

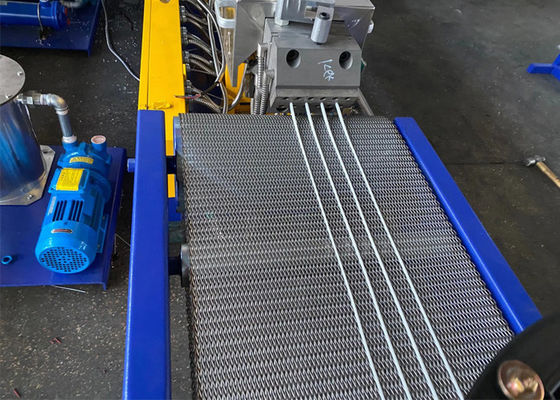

Machine pictures for reference:
